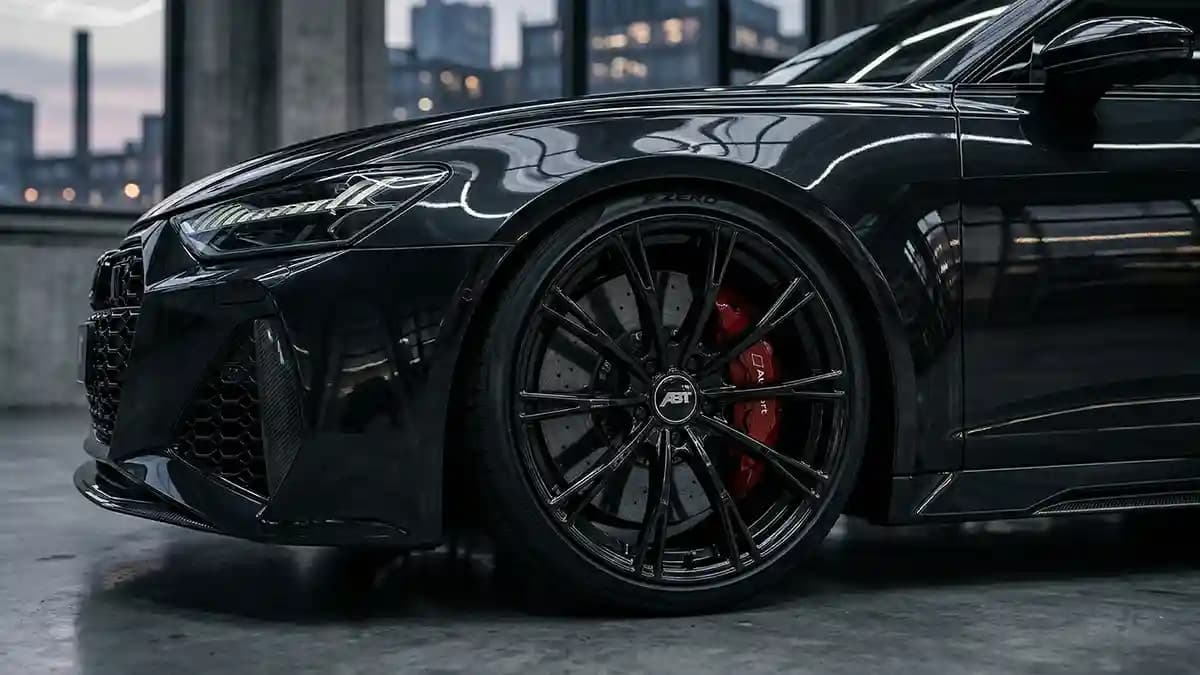

ABT Sportsline Wheel Stickers: The Complete Sizing and Installation Guide

An ABT Sportsline wheel sticker looks right when you size the flat cap face correctly and install it on a clean surface, not when you guess and hope for the best. I learned that the hard way next to an Audi with beautiful wheels and one center cap that looked like it borrowed a shirt two sizes too big. From ten feet away it looked fine. Up close it looked drunk.

That is the trap with ABT stuff. The badge has real tuning cred, so people get excited and order fast. ABT goes back to 1896, has been tied to Audi since the Auto Union days, is marking its 130th anniversary in 2026, and still sits deep in both road car tuning and motorsport, including DTM competition with Lamborghini factory support. That makes the logo cool, sure, but none of that tells you whether your cap face is 56 mm, 60 mm, or something weirder.

Here is the part most people skip. There is no single magic ABT wheel cap size. ABT’s current wheel line alone covers very different wheel families, with Sport GR in 20, 21, and 22 inch, Sport ER C in 18 and 19 inch, and High Performance HR in 22 and 23 inch, so the center area you are covering can vary a lot from one setup to the next. That is why copying a number from a forum is how you turn a clean build into a tiny but annoying mess.

I always tell people to start with the wheel in front of them, not the brand on the hood and not the badge in their cart. ABT builds a strong visual language around sharp wheels, dark finishes, and tight details. A bad center sticker ruins that fast. It is like wearing a tailored jacket with clown shoes. Your eye goes right to the wrong part.

Start with the flat face, not the outer lip

This is where most ABT center cap emblem mistakes begin. People measure the full cap from edge to edge because that circle is easy to see. But the sticker does not care about the big outer ring, it cares about the flat landing zone where the adhesive actually sits. Recent sizing guidance on your own site says the same thing, measure the visible flat circle, not the outer lip, and if the edge gets rounded near the outside, the same size or 1 mm smaller usually looks cleaner.

When I measure an Audi ABT emblem job, I keep it boring and repeatable. Boring is good here. Boring saves money. The guy who eyeballs a wheel cap usually ends up buying twice.

1. Clean the cap first so dirt does not fake the number.

2. Zero the digital caliper before it touches the part.

3. Measure the flat circle where the sticker will actually sit.

4. Measure in at least three spots, top to bottom, side to side, and one diagonal.

5. Write the number down in millimeters right away.

6. If the cap is a snap in type and not just a flat overlay job, check the inner opening and the depth too.

That last point matters more than people think. Outer diameter tells you the big width. Inner diameter tells you about the retaining area or opening. Depth tells you whether a dome will sit nicely or look buried like a coin at the bottom of a cup. On a clean ABT wheel cap install, those little details are the whole game.

Common ABT wheel cap situations I see all the time

The first one is the easy one, factory Audi wheels with a flat center cap face. In that case, you usually measure the visible flat circle, choose that size, or go 1 mm smaller if the outer edge rolls off. That gives you the built in look people want from an ABT sportsline wheel sticker, not the sticker on top of a sticker look.

The second one is an aftermarket wheel with an ABT vibe but not an actual ABT cap. This is where people get in trouble. The wheel brand says one thing, the center cap system says another, and the cap face may be smaller than your eyes think. If the face is deeply recessed or slightly dished, stop pretending the number alone solves everything.

The third one is an older cap with wear around the center. Those can fool you because the old badge left a dirt ring or glue line that makes the landing zone look bigger. Clean first, then measure. If you skip that, the caliper is reading grime and wishful thinking.

The fourth one is the snap in cap problem. If you are replacing the whole cap hardware, not just applying a sticker, then you need more than the face size. You need the retaining area and sometimes the depth too. A wheel can accept the right logo size and still reject the wrong cap body like a bad transplant.

Why ABT sizing gets guessed wrong so often

Because people think the badge is the important part. It is not. The important part is the landing zone under the badge. ABT’s current wheels range from classic five arm sport looks to more aggressive concave designs, and that means the center section can change in shape and scale even when the branding stays familiar. Cool logo, different cap geometry, same headache if you do not measure.

There is another reason too. Audi owners are used to seeing repeat sizes like 56 mm, 60 mm, 63.5 mm, 65 mm, and 68 mm in wheel badge talk, so they start believing every car lives inside that little group. Those numbers do come up a lot, but your own recent measuring guide makes the bigger point clearly, common is not universal, and the wheel in front of you always wins the argument.

That is why I like sending people to the Audi collection only after they measure. Browse first for style if you want. Buy only after the numbers are real.

How to choose the right ABT sticker once you have the number

This part is actually easy. Your ABT product pages already make the shopping side simple. The ABT emblem options are sold in a wide diameter range from 20 mm to 120 mm, they are built from a premium vinyl base with a domed resin top, and they are intended for flat surfaces only. That is a huge help because once you know your true face size, you are not stuck hunting in some tiny preset range.

If you want the cleaner factory style look, I would start with Audi ABT Wheel Emblems Premium Edition. If you want a second option with the same ABT theme and easy sizing flexibility, Audi ABT Wheel Emblems Stylish Design is the other natural pick. Both fit the same general ABT tuning language, dark, sharp, and intentional, not loud for no reason.

Here is my simple buying rule.

1. Flat cap face with a crisp edge, order the exact measured size.

2. Flat cap face with a rounded outer edge, go 1 mm smaller.

3. Slight dish or curve, check the surface shape before you order, because the right diameter can still lift at the edge.

4. Damaged or crusty cap face, clean or restore first, then measure again.

5. Full cap replacement job, do not buy from face size alone.

That rule is not sexy, but man it works. And it works because it respects the part, not the hype.

How to install an audi ABT emblem so it stays put

A lot of people think install starts when the backing paper comes off. Wrong. Install starts with surface prep. 3M says most surfaces are best cleaned with a mix of isopropyl alcohol and water before bonding, and it also says most pressure sensitive adhesives want initial application in about 21 to 38 degrees C, with low temperature installs below 10 degrees C not recommended. That lines up perfectly with what I see in real life, cold installs are where stupid problems are born.

Your own ABT product page keeps the active part simple, clean, peel, position, press, and it says fitting takes about thirty seconds on a clean flat center cap surface. I like that because it tells the truth. The actual sticking is fast. The part that decides whether it lasts is the prep you did two minutes earlier.

This is the install routine I trust.

1. Wash the cap face and dry it fully.

2. Wipe the bonding area with IPA and water on a clean microfiber, then let it flash off.

3. Do a dry fit before peeling anything.

4. Peel the backing slowly so you do not touch the adhesive more than needed.

5. Align from straight above, not from a weird side angle.

6. Press from the center outward so the edge seals cleanly.

7. Hold firm pressure for at least thirty seconds.

8. Leave it alone afterward instead of poking it every ten minutes like a nervous raccoon.

What ruins a fresh ABT wheel sticker after a good install

Usually it is not one huge event. It is a bunch of small dumb things stacked together. A dirty cap face. A cold garage. Weak pressure on the outer edge. Then a wash bay visit where someone gets too close with the nozzle and acts shocked when the seam gets angry.

Your recent post on emblem failure says heat, salt, and high pressure washes are the three usual bullies, and that matches what 3M says about pressure washing graphics. 3M’s current maintenance bulletin warns that excessive pressure can force water under the film, weaken adhesion, and cause lift or curl. It says to use a wide spray pattern, stay at or below 1,200 psi, and keep the nozzle at least 12 inches away when spraying straight at the surface.

So here is my car wash advice. Give the new badge a little peace at first. On wrapped vehicle graphics, 3M says hand washing is best and says not to wash for at least 72 hours after installation, which is a good conservative mindset for any fresh adhesive detail on a wheel too. After that, wash normally, but do not blast the edge from point blank range like you are trying to remove paint from a fence.

The mistakes that make an ABT install look cheap

1. Measuring the whole cap instead of the flat face.

2. Ordering by car model alone.

3. Sticking onto old glue, wax, or brake dust.

4. Installing in a cold garage.

5. Choosing a cap with a curved face for a sticker meant for flat surfaces.

6. Aiming pressure wash water right at the edge.

7. Ignoring a small dirt ring or lifted corner and hoping it fixes itself.

I have seen every one of those. More than once. The funniest part is people will spend serious money on wheels, tires, and suspension, then freestyle the final center detail with the same care they use to slap a coupon on a pizza box. That little center badge sits in the middle of the wheel like a target. It needs respect.

My final rule for getting ABT center cap fitment right

Measure the real face. Buy for the real face. Prep the real face. That is it. ABT has the heritage, the Audi link, the motorsport story, and the current wheel catalog to make the badge worth using, but none of that rescues lazy fitment. Get the millimeters right and the sticker looks like it belonged there from day one.

And if you want two extra reads before you order, open Millimeters Matter: How to Use Digital Calipers for a Perfect Fit for the measuring side, then read Why Do Factory Emblems Fall Off? Heat, Salt, and High Pressure Washes so you do not undo a good install with a bad wash routine. That combo will save you more grief than any random forum shortcut ever will.

Quick Q and A

Q: Is there one standard ABT wheel cap size for all Audi setups?
No. ABT’s wheel families and Audi fitments vary too much for one universal answer, so you need to measure the cap in front of you.

Q: Should I measure the full cap or just the center?
Measure the flat visible landing zone where the sticker will bond. The outer lip fools people all the time.

Q: Can I install an ABT sticker on a curved cap?
Only if the surface shape suits the material. If the cap face is strongly curved or recessed, the right diameter can still fail at the edge.

Q: What is the best prep before sticking it on?
Clean first, then wipe with isopropyl alcohol and water, and install at a sane temperature. Cold dirty installs are how good badges get blamed for bad prep.

Q: How soon can I wash the car after install?
Give the adhesive time to settle. A patient wait and a gentle first wash beat acting brave with a pressure lance.

Q: Are these ABT stickers for flat surfaces only?
Yes, that is how the current product pages position them, and that is the safest way to keep the edge sealed and the finish clean.

Q: What if I am between sizes?
On a flat cap with a slightly rounded edge, 1 mm smaller usually looks cleaner than too big. Bigger is not bolder here, it is just sloppier.

Q: What is the fastest way to mess up the look?
Guess the size, rush the prep, then hit the edge with a pressure washer from too close. That three move combo has wrecked more wheel badge installs than people like to admit.
