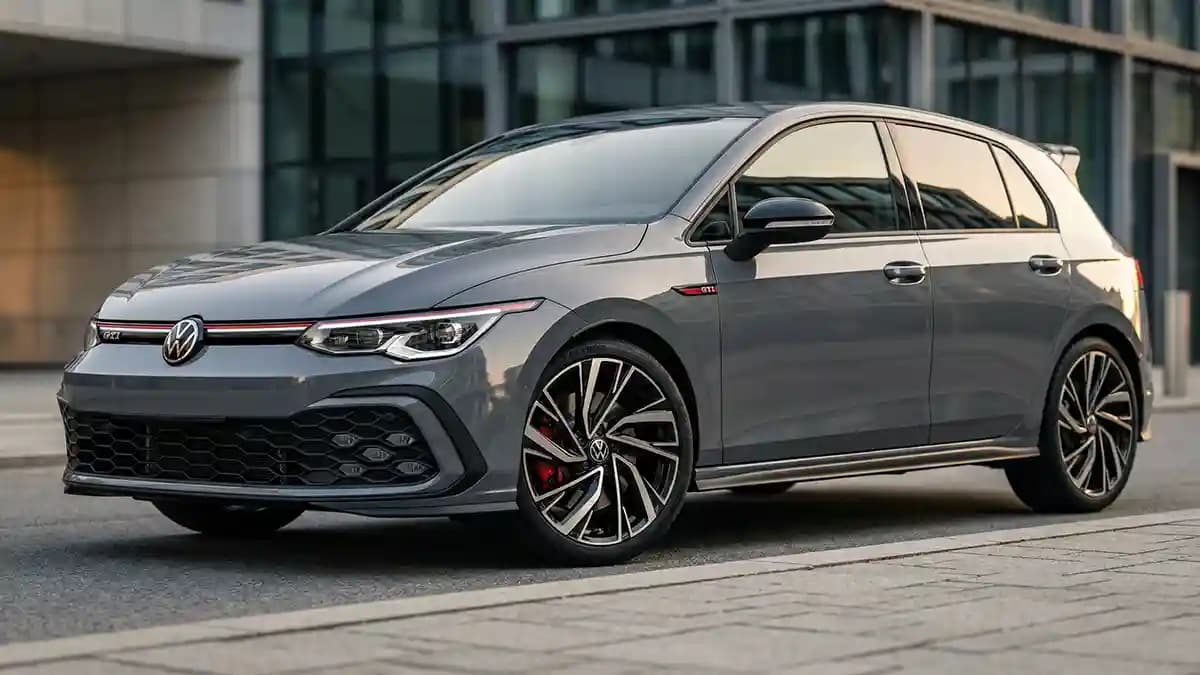

Volkswagen Golf GTI Center Cap Emblems: MK5 Through MK8 Fitment Guide

VW Golf GTI center cap emblem fitment from MK5 through MK8 comes down to one rule, measure your exact cap, because 65 mm is the number you will see most, but it is not the answer for every wheel. I learned that crouched next to a GTI with one fresh wheel, one faded wheel, and two that looked like they had been in a small argument with a pressure washer. The car was clean, the paint popped, the stance was right, but the wheel centers were chaos. That is the annoying thing about GTI center caps, they are tiny until they are wrong, then they are all you see.

Volkswagen has run the GTI through the Golf V, Golf VI, seventh generation, and eighth generation eras, and the MK8 line is still current in refreshed form. Official VW media pegs Golf V at model years 2006 through 2009 in the United States, Golf VI at 2010 through 2014, the 2015 GTI as seventh generation, and the 2022 GTI as eighth generation. That matters because the badge style changed, the wheels changed, and the cap hardware families changed too. It does not mean your cap size is random, it means you stop shopping by vibes and start shopping by what is in front of you.

The fast answer for MK5 through MK8

When I am helping someone pick a GTI center cap emblem, I boil it down to four facts.

1. 65 mm is the common shopping size you will keep seeing for many VW GTI and Golf wheel center caps, but common does not mean guaranteed. UroTuning lists VW badge insert options around 65 mm outer diameter with 56 mm bore for the 3B7601171 cap family, and 56 mm outer diameter with 52 mm bore for the older 1J0601171 family. VW parts listings also show 1J0601171 as a cap for 52 mm hub bores, while the newer GTI accessory line includes dynamic GTI logo caps under part number 000071213E.

2. The face you see is not the same thing as the clip size at the back. This is where people get burned. They buy a “56 mm GTI cap,” then wonder why the front face they measured was nowhere near 56 mm.

3. MK7 and MK8 owners still need to measure even when the internet screams 65 mm. Later cap families such as 5G0601171 and 5H0601171 show up across newer wheels and accessory listings, but wheel design still decides fit.

4. If the cap face has a bevel or a rounded shoulder, going 1 mm smaller on an overlay often saves the whole job. A sticker that rides onto the curve will look wrong and age badly.

MK5 and MK6, same lesson, older cap families

MK5 and MK6 GTIs still trick people because the cars are old enough that many no longer wear their original wheels. One owner bent a rim, another bought a used set, another threw on replicas late at night and called it a plan. So when people ask me for the “standard” MK5 or MK6 size, I give them the honest answer, 65 mm is common, but your wheel gets the final vote. That is not me dodging the question. It is me trying to save you from opening a package and saying words your neighbors do not need to hear.

This is also where older VW cap families keep showing up. The aftermarket keeps pointing buyers toward 3B7601171 for common 65 mm outer caps with a 56 mm bore, while the older 1J0601171 family is tied to a smaller 56 mm outer cap and 52 mm bore. If your GTI is still on stock wheels, that gives you a useful clue. If it is on used or swapped wheels, measure first and trust the cap more than the badge on the hatch.

Style wise, older GTIs like simple choices. I like a clean factory style VW roundel if the car is close to stock, or a red accented GTI look if the grille and brake details already point that way. What I do not like is trying to make an older GTI look newer with an overdesigned badge that fights the wheel. If you want the safe lane first, start in the VW collection and narrow the size after that.

MK7 and MK7.5, where the 65 mm search gets loud

The 2015 GTI brought in the seventh generation, and this is the zone where “Golf MK7 center cap” becomes a giant shopping phrase. Enthusiast vendors explicitly warn buyers that the newer textured logo style 5G0601171 needs its own check before ordering inserts. That is the clue. The name of the car is not enough, the part family matters.

For MK7 and MK7.5, I use this simple routine.

1. If the wheels are known OEM, check whether the cap family is older 3B, older 1J, or newer 5G.

2. If the wheels are aftermarket, ignore the car for one minute and measure the cap face.

3. If you are buying a decal overlay instead of a full snap in cap, measure only the flat visible landing zone.

4. If the cap face rolls into a curve at the edge, do not buy to the absolute outer edge.

This is also the generation where style can go wrong fast. The car already looks sharp. It does not need a screaming wheel badge with six colors and a fake race font. A tidy VW GTI badge emblem or a cleaner VW wheel emblem usually works better. Both product pages on Impossible Stickers also make the practical point that the domed emblem range runs from 20 mm to 120 mm, which is why measuring first beats guessing every time.

MK8 and MK8.5, cleaner car, cleaner badge choices

The 2022 GTI is the eighth generation, and VW’s 2025 press material makes clear that the refreshed current car keeps the same basic formula while updating design details. Owners of MK8 and MK8.5 cars usually want the wheel center to feel cleaner, not busier. You can see that in the official accessories too. Volkswagen sells dynamic wheel center caps with the VW logo under 000071213D and GTI logo dynamic caps under 000071213E, which tells you the wheel center is no longer an afterthought detail.

Here is what I like on MK8.

1. Gloss black and red if the car already has clear GTI cues.

2. Clean silver and black if you want the factory plus look.

3. Simple monochrome if the wheels are dark and the car is already visually busy.

4. Dynamic caps if you want the official accessory look.

What I do not like is slapping a loud old school badge onto a very clean MK8 wheel face just because the seller photo looked exciting. The newer car wears restraint better.

The 65 mm trap, explained like a normal person

When people say “GTI center caps are 65 mm,” they are usually talking about the visible outer diameter of a full cap or the shopping size of a replacement face. When other people say “GTI center caps are 56 mm,” they are often talking about the bore or the clip area on the back. Those are not the same measurement. UroTuning spells that distinction out clearly with 65 mm outer and 56 mm bore for one common VW family, plus 56 mm outer and 52 mm bore for another. VW’s official 1J0601171 listing also ties that older cap to 52 mm hub bores.

That is why so many bad orders happen. One seller uses the front face number. Another uses the back clip number. Then you are standing in the driveway with a cap that almost fits, which is the dumbest kind of wrong because it still feels close enough to annoy you for days.

Once you see the difference, the whole thing gets easy. Like above, the number on the front and the number on the back can both be true. They are just answering different questions. One is “what size is the cap face,” the other is “what size is the clip area or bore.” If you are buying an overlay emblem, you care about the flat visible face. If you are buying a full snap in cap, you care about both.

How I measure a GTI cap without making it weird

You do not need lab gear. Digital calipers are best, but a good ruler works if you are careful and the cap is off the car. The main thing is you stop measuring random circles that are not the landing zone.

Use this routine.

1. Remove one center cap if the wheel design lets you do it safely.

2. Clean the face so brake dust does not fake the edge.

3. Measure the flat visible circle straight across in millimeters.

4. Flip the cap and measure the clip area or note the part number on the back.

5. If the face rolls into a curve at the edge, buy the overlay 1 mm smaller.

6. Order one spare if the car is a daily driver.

If you are not sure whether you are replacing a whole cap or just the badge face, read The Hubcap Terminology Guide: Center Caps vs. Dust Caps vs. Hubcaps first. And if one of your GTI badges already vanished, Lost Your Wheel Emblem? The Step by Step Restoration Guide is the right next click. Both posts keep the same rule front and center, measure the part you actually need, not the part you hope you need.

Best emblem styles for each GTI generation

For MK5, I like classic GTI cues, red edge details, a simple black face with silver VW mark, or a clean heritage look if the rest of the car already nods that way.

For MK6, I like black and red, satin black with enough contrast to read from a few steps back, or a standard VW roundel when the car is otherwise close to stock.

For MK7 and MK7.5, I like restraint, factory style VW logos, a sharp GTI red accent if the grille and brakes already support it, or monochrome black for darker wheel sets.

For MK8 and MK8.5, I go even cleaner, crisp black and silver, a thin red GTI cue, or official dynamic style if you want the newest accessory look.

The secret is boring, but it works. Match the badge to the mood of the car, not just the letters on the hatch. GTI likes energy. It does not need clown makeup.

Install tips so your new emblem stays put

A good badge still needs a clean install. Impossible Stickers’ own VW product pages call out premium vinyl, a 3D domed resin top, and flat surface use, which tells you exactly how to treat the job. Clean, flat, centered, done.

This is the routine I trust.

1. Wash the cap and dry it fully.

2. Wipe the bonding zone with isopropyl alcohol.

3. Let the cap get to room temperature if the garage is cold.

4. Dry fit once before peeling the backing.

5. Align from straight on, not from some goofy side angle.

6. Press from the middle out.

7. Leave it alone before you go hunting for the pressure washer.

Quick Q and A

Q: Is 65 mm the standard VW Golf GTI center cap emblem size?
A: It is the most common shopping number you will see, but do not trust it blindly. Measure the flat face on your exact cap, because VW uses different cap families and wheel designs.

Q: What is the difference between 65 mm and 56 mm on VW caps?
A: 65 mm usually refers to the outer face size people see from the front. 56 mm often refers to the rear bore or clip area on certain cap families.

Q: Do MK7 and MK8 GTI center caps use the same part family?
A: Not always. Later GTI and Golf wheels commonly show newer part families like 5G and 5H, so you should check the back of the cap or the wheel listing before ordering.

Q: Can I use a domed overlay instead of replacing the whole cap?
A: Yes, if the cap body is still there and the flat face is clean enough for the overlay to bond well. That is often the cheaper and better looking move.

Q: What style looks best on a black GTI?
A: Gloss black, black and silver, or a restrained red GTI accent usually wins. The wheel should look finished, not loud for no reason.
